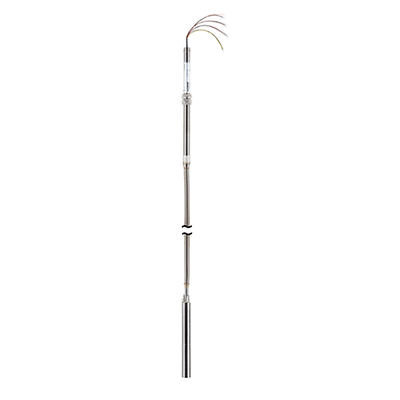

Rosemount-P-Tank Gauging Temperature Free Water Level Sensors

Rosemount™ Temperature and Free Water Level Sensors for Tank Gauging Applications

Select Product
Request Quote
Learn About

Product Description

The Rosemount temperature and fee water level solution for tank gauging applications consists of three- and four-wire calibrated temperature sensors and free water level measurement, with up to 16 Pt-100 spot elements per sensor/transmitter. Only fully immersed elements are used to determine product temperature, and each sensor is connected to a Rosemount 2240S Multi-input Temperature Transmitter.

Products

Search
1-3 of 3 results for Products
ADD TO WORKSPACE
ADD TO WORKSPACE
ADD TO WORKSPACE

Specifications

Accuracy
Temperature Sensors:
1/6 DIN Class B (standard
1/10 DIN Class B (option).

Calibration option:
Individually calibrated spot elements with four-wire connection enables ±0.025 °C (±0.045 °F) total sensor accuracy.

Water Level Sensor:
± 2 mm (0.08 in.) with 500 mm active length
± 4 mm (0.16 in.) with 1000 mm active length.
Element Type(s)
Pt-100 spot elements according to EN 60751.
Number of Spot Elements
Up to 16 RTD spot elements:
Three-wire common return or individual wiring.
Four-wire individual wiring.
Measurement Range
Temperature Sensor: -50 to +250 °C (-58 to +482 °F).
Active measuring range water level sensor: 500 mm (20 in.), or 1000 mm (40 in.).
Overall Length
Standard is 5-70 m (16.4-230 ft). Other lengths on request.
Protective Sheath
Stainless steel, AISI 316. Wall thickness 0.3 mm (0.012 in.). = 1 in.
Water Level Sensor Versions
Open model: Recommended for crude oil and heavy duty products.
Closed model: Recommended for lighter fuels such as diesel oil.

Features

  • Get custody transfer net volume accuracy with three- or four-wire multiple spot temperature sensors for bulk liquid storage tanks.
  • Improve accuracy with unique sensor calibration.
  • Measure liquid temperature with up to 16 spot elements.
  • Measure free water level.
  • Select from a wide range of accessories such as anchor weights and vapor boots.
